Example addcovariates
import torch
import geospaNN
import numpy as np
import time
import pandas as pd
import seaborn as sns
import random
import matplotlib
import matplotlib.pyplot as plt
path = '../data/Output/'
def RMSE(x,y):
x = x.reshape(-1)
y = y.reshape(-1)
n = x.shape[0]
return(np.sqrt(np.sum(np.square(x-y))/n))
def f5(X): return (10 * np.sin(np.pi * X[:, 0] * X[:, 1]) + 20 * (X[:, 2] - 0.5) ** 2 + 10 * X[:, 3] + 5 * X[:, 4]) / 6
def f1(X): return 10 * np.sin(2 * np.pi * X)
sigma = 5
phi = 0.3
tau = 0.01
theta = torch.tensor([sigma, phi / np.sqrt(2), tau])
p = 1;
funXY = f1
n = 1000
b = 10
nn = 20
batch_size = 50
torch.manual_seed(2025)
X, Y, coord, cov, corerr = geospaNN.Simulation(n, p, nn, funXY, theta, range=[0, b])
random.seed(2024)
X, Y, coord, _ = geospaNN.spatial_order(X, Y, coord, method='max-min')
data = geospaNN.make_graph(X, Y, coord, nn)
torch.manual_seed(2024)
np.random.seed(0)
data_train, data_val, data_test = geospaNN.split_data(X, Y, coord, neighbor_size=nn,
test_proportion=0.2)
torch.manual_seed(2024)
mlp_nn = torch.nn.Sequential(
torch.nn.Linear(p, 50),
torch.nn.ReLU(),
torch.nn.Linear(50, 20),
torch.nn.ReLU(),
torch.nn.Linear(20, 1)
)
nn_model = geospaNN.nn_train(mlp_nn, lr=0.01, min_delta=0.001)
training_log = nn_model.train(data_train, data_val, data_test, seed = 2024)
theta0 = geospaNN.theta_update(mlp_nn(data_train.x).squeeze() - data_train.y,
data_train.pos, neighbor_size=20)
model = geospaNN.nngls(p=p, neighbor_size=nn, coord_dimensions=2, mlp=mlp_nn, theta=torch.tensor(theta0))
predict_nn = model.predict(data_train, data_test)
torch.manual_seed(2024)
mlp_nngls = torch.nn.Sequential(
torch.nn.Linear(p, 50),
torch.nn.ReLU(),
torch.nn.Linear(50, 20),
torch.nn.ReLU(),
torch.nn.Linear(20, 1)
)
model_nngls = geospaNN.nngls(p=p, neighbor_size=nn, coord_dimensions=2, mlp=mlp_nngls, theta=torch.tensor(theta0))
nngls_model = geospaNN.nngls_train(model_nngls, lr=0.1, min_delta=0.001)
training_log = nngls_model.train(data_train, data_val, data_test,
Update_init=10, Update_step=5, seed = 2024)
theta_hat = geospaNN.theta_update(mlp_nngls(data_train.x).squeeze() - data_train.y,
data_train.pos, neighbor_size = 20)
model = geospaNN.nngls(p=p, neighbor_size=nn, coord_dimensions=2, mlp=mlp_nngls, theta=torch.tensor(theta_hat))
predict_nngls = model.predict(data_train, data_test)
print(theta_hat)
print(theta0)
[4.26710204 0.41945289 0.0132123 ]
[3.8977135 0.48003391 0.01919864]
data_add_train = geospaNN.make_graph(torch.concat([data_train.x, data_train.pos], axis = 1),
data_train.y, data_train.pos, nn)
data_add_val = geospaNN.make_graph(torch.concat([data_val.x, data_val.pos], axis = 1),
data_val.y, data_val.pos, nn)
data_add_test = geospaNN.make_graph(torch.concat([data_test.x, data_test.pos], axis = 1),
data_test.y, data_test.pos, nn)
torch.manual_seed(2024)
np.random.seed(0)
data_add_train, data_add_val, data_add_test = geospaNN.split_data(torch.concat([X, coord], axis = 1), Y, coord, neighbor_size=nn,
test_proportion=0.2)
torch.manual_seed(2025)
mlp_nn_add = torch.nn.Sequential(
torch.nn.Linear(p+2, 50),
torch.nn.ReLU(),
torch.nn.Linear(50, 20),
torch.nn.ReLU(),
torch.nn.Linear(20, 1)
)
nn_add_model = geospaNN.nn_train(mlp_nn_add, lr=0.01, min_delta=0.001)
training_log = nn_add_model.train(data_add_train, data_add_val, data_add_test, seed = 2024)
predict_nn_add = mlp_nn_add(data_add_test.x).detach().numpy().reshape(-1)
coord_np = coord.detach().numpy()
num_basis = [2 ** 2, 4 ** 2, 6 ** 2]
knots_1d = [np.linspace(0, 1, int(np.sqrt(i))) for i in num_basis]
##Wendland kernel
K = 0
phi_temp = np.zeros((n, sum(num_basis)))
for res in range(len(num_basis)):
theta_temp = 1 / np.sqrt(num_basis[res]) * 2.5
knots_s1, knots_s2 = np.meshgrid(knots_1d[res], knots_1d[res])
knots = np.column_stack((knots_s1.flatten(), knots_s2.flatten()))
for i in range(num_basis[res]):
d = np.linalg.norm(coord_np / b - knots[i, :], axis=1) / theta_temp
for j in range(len(d)):
if d[j] >= 0 and d[j] <= 1:
phi_temp[j, i + K] = (1 - d[j]) ** 6 * (35 * d[j] ** 2 + 18 * d[j] + 3) / 3
else:
phi_temp[j, i + K] = 0
K = K + num_basis[res]
torch.manual_seed(2024)
np.random.seed(0)
data_DK_train, data_DK_val, data_DK_test = geospaNN.split_data(torch.concat([X, torch.from_numpy(phi_temp)], axis = 1).float(),
Y, coord, neighbor_size=nn, test_proportion=0.2)
torch.manual_seed(2024)
mlp_nn_DK = torch.nn.Sequential(
torch.nn.Linear(p+K, 50),
torch.nn.ReLU(),
torch.nn.Linear(50, 20),
torch.nn.ReLU(),
torch.nn.Linear(20, 1))
nn_DK_model = geospaNN.nn_train(mlp_nn_DK, lr=0.01, min_delta=0.001)
training_log = nn_DK_model.train(data_DK_train, data_DK_val, data_DK_test, seed = 2024)
predict_DK = mlp_nn_DK(data_DK_test.x).detach().numpy().reshape(-1)

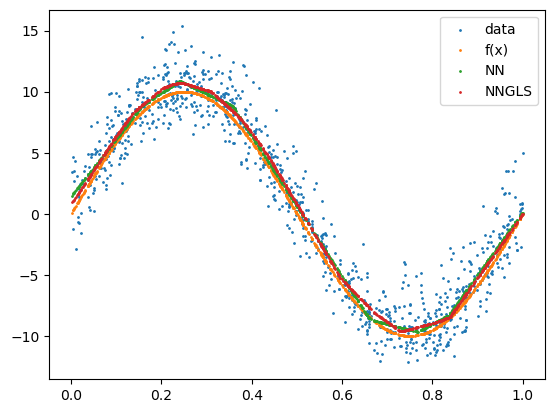

plt.clf()
plt.scatter(X.detach().numpy(), Y.detach().numpy(), s=1, label='data')
plt.scatter(X.detach().numpy(), funXY(X.detach().numpy()), s=1, label='f(x)')
plt.scatter(X.detach().numpy(), mlp_nn(X).detach().numpy(), s=1, label='NN')
plt.scatter(X.detach().numpy(), mlp_nngls(X).detach().numpy(), s=1, label='NNGLS')
plt.legend()
plt.show()
estimate_nn = mlp_nn(data_test.x).detach().numpy().reshape(-1)

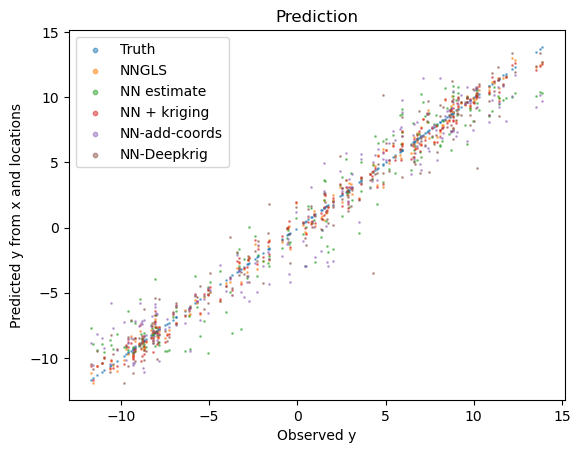

plt.clf()
plt.scatter(data_test.y.detach().numpy(), data_test.y.detach().numpy(), s=1, alpha = 0.5, label='Truth')
plt.scatter(data_test.y.detach().numpy(), predict_nngls, s=1, alpha = 0.5, label='NNGLS')
plt.scatter(data_test.y.detach().numpy(), estimate_nn, s=1, alpha = 0.5, label='NN estimate')
plt.scatter(data_test.y.detach().numpy(), predict_nn, s=1, alpha = 0.5, label='NN + kriging')
plt.scatter(data_test.y.detach().numpy(), predict_nn_add, s=1, alpha = 0.5, label='NN-add-coords')
plt.scatter(data_test.y.detach().numpy(), predict_DK, s=1, alpha = 0.5, label='NN-Deepkrig')
#plt.scatter(data_test.y.detach().numpy(), predict3, s=1, alpha = 0.5, label='NNGLS nugget 97%')
lgnd = plt.legend(fontsize=10)
plt.xlabel('Observed y', fontsize=10)
plt.ylabel('Predicted y from x and locations', fontsize=10)
plt.title('Prediction')
for handle in lgnd.legend_handles:
handle.set_sizes([10.0])
plt.savefig(path + 'Prediction_block5.png')
print(f"RMSE nn-estimate: {torch.mean((data_test.y - estimate_nn)**2):.2f}")
print(f"RMSE nngls: {torch.mean((data_test.y - predict_nngls)**2):.2f}")
print(f"RMSE nn+kriging: {torch.mean((data_test.y - predict_nn)**2):.2f}")
print(f"RMSE nn-add-coordinates: {torch.mean((data_test.y - predict_nn_add)**2):.2f}")
print(f"RMSE nn-Deepkrig: {torch.mean((data_test.y - predict_DK)**2):.2f}")
RMSE nn-estimate: 2.96
RMSE nngls: 0.45
RMSE nn+kriging: 0.51
RMSE nn-add-coordinates: 3.17
RMSE nn-Deepkrig: 1.97
colors = plt.rcParams['axes.prop_cycle'].by_key()['color']
labels = ["Truth", "NNGLS", "NN estimate", "NN + kriging", "NN-add-coords", "NN-DeepKrig"]
data = [data_test.y.detach().numpy(), predict_nngls, estimate_nn, predict_nn, predict_nn_add, predict_DK]
for i, label in enumerate(labels):
if i <= 1:
continue

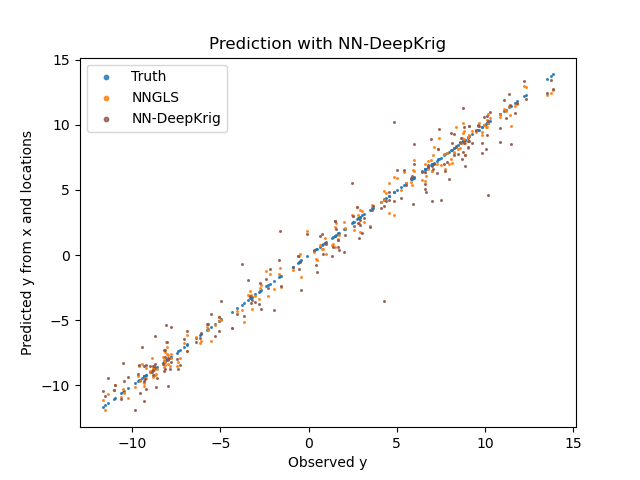

plt.clf()
plt.scatter(data_test.y.detach().numpy(), data_test.y.detach().numpy(), s=1.5, alpha = 0.8, label='Truth')
plt.scatter(data_test.y.detach().numpy(), predict_nngls, s=1.5, alpha = 0.8, label='NNGLS')
plt.scatter(data_test.y.detach().numpy(), data[i], s=1.5, alpha = 0.8, label=label, color = colors[i])
#plt.scatter(data_test.y.detach().numpy(), predict3, s=1, alpha = 0.5, label='NNGLS nugget 97%')
lgnd = plt.legend(fontsize=10)
plt.xlabel('Observed y', fontsize=10)
plt.ylabel('Predicted y from x and locations', fontsize=10)
plt.title('Prediction with ' + label)
for handle in lgnd.legend_handles:
handle.set_sizes([10.0])
#plt.show()
plt.savefig(path + 'Prediction_[5 03 01]_' + label + '.png')
MSE_nngls = []
MSE_nn = []
MSE_nnkrig = []
MSE_nnadd = []
MSE_nnDK = []
n_vec = [1000, 2000, 5000, 10000]
for n in n_vec:
b = 10
torch.manual_seed(2025)
X, Y, coord, cov, corerr = geospaNN.Simulation(n, p, nn, funXY, theta, range=[0, b])
random.seed(2024)
X, Y, coord, _ = geospaNN.spatial_order(X, Y, coord, method='max-min')
data = geospaNN.make_graph(X, Y, coord, nn)
torch.manual_seed(2024)
np.random.seed(0)
data_train, data_val, data_test = geospaNN.split_data(X, Y, coord, neighbor_size=nn,
test_proportion=0.2)
torch.manual_seed(2024)
mlp_nn = torch.nn.Sequential(
torch.nn.Linear(p, 50),
torch.nn.ReLU(),
torch.nn.Linear(50, 20),
torch.nn.ReLU(),
torch.nn.Linear(20, 1)
)
nn_model = geospaNN.nn_train(mlp_nn, lr=0.01, min_delta=0.001)
training_log = nn_model.train(data_train, data_val, data_test, seed = 2024)
theta0 = geospaNN.theta_update(mlp_nn(data_train.x).squeeze() - data_train.y,
data_train.pos, neighbor_size=20)
model = geospaNN.nngls(p=p, neighbor_size=nn, coord_dimensions=2, mlp=mlp_nn, theta=torch.tensor(theta0))
predict_nn = model.predict(data_train, data_test)
estimate_nn = mlp_nn(data_test.x).detach().numpy().reshape(-1)
torch.manual_seed(2024)
mlp_nngls = torch.nn.Sequential(
torch.nn.Linear(p, 50),
torch.nn.ReLU(),
torch.nn.Linear(50, 20),
torch.nn.ReLU(),
torch.nn.Linear(20, 1)
)
model_nngls = geospaNN.nngls(p=p, neighbor_size=nn, coord_dimensions=2, mlp=mlp_nngls, theta=torch.tensor(theta0))
nngls_model = geospaNN.nngls_train(model_nngls, lr=0.1, min_delta=0.001)
training_log = nngls_model.train(data_train, data_val, data_test,
Update_init=10, Update_step=5, seed = 2024)
theta_hat = geospaNN.theta_update(mlp_nngls(data_train.x).squeeze() - data_train.y,
data_train.pos, neighbor_size = 20)
model = geospaNN.nngls(p=p, neighbor_size=nn, coord_dimensions=2, mlp=mlp_nngls, theta=torch.tensor(theta_hat))
predict_nngls = model.predict(data_train, data_test)
torch.manual_seed(2024)
np.random.seed(0)
data_add_train, data_add_val, data_add_test = geospaNN.split_data(torch.concat([X, coord], axis = 1), Y, coord, neighbor_size=nn,
test_proportion=0.2)
mlp_nn_add = torch.nn.Sequential(
torch.nn.Linear(p+2, 50),
torch.nn.ReLU(),
torch.nn.Linear(50, 20),
torch.nn.ReLU(),
torch.nn.Linear(20, 1)
)
nn_add_model = geospaNN.nn_train(mlp_nn_add, lr=0.01, min_delta=0.001)
training_log = nn_add_model.train(data_add_train, data_add_val, data_add_test, seed = 2024)
predict_nn_add = mlp_nn_add(data_add_test.x).detach().numpy().reshape(-1)
coord_np = coord.detach().numpy()
num_basis = [2 ** 2, 4 ** 2, 6 ** 2]
knots_1d = [np.linspace(0, 1, int(np.sqrt(i))) for i in num_basis]
##Wendland kernel
K = 0
phi_temp = np.zeros((n, sum(num_basis)))
for res in range(len(num_basis)):
theta_temp = 1 / np.sqrt(num_basis[res]) * 2.5
knots_s1, knots_s2 = np.meshgrid(knots_1d[res], knots_1d[res])
knots = np.column_stack((knots_s1.flatten(), knots_s2.flatten()))
for i in range(num_basis[res]):
d = np.linalg.norm(coord_np / b - knots[i, :], axis=1) / theta_temp
for j in range(len(d)):
if d[j] >= 0 and d[j] <= 1:
phi_temp[j, i + K] = (1 - d[j]) ** 6 * (35 * d[j] ** 2 + 18 * d[j] + 3) / 3
else:
phi_temp[j, i + K] = 0
K = K + num_basis[res]
torch.manual_seed(2024)
np.random.seed(0)
data_DK_train, data_DK_val, data_DK_test = geospaNN.split_data(torch.concat([X, torch.from_numpy(phi_temp)], axis = 1).float(),
Y, coord, neighbor_size=nn, test_proportion=0.2)
mlp_nn_DK = torch.nn.Sequential(
torch.nn.Linear(p+K, 50),
torch.nn.ReLU(),
torch.nn.Linear(50, 20),
torch.nn.ReLU(),
torch.nn.Linear(20, 1))
nn_DK_model = geospaNN.nn_train(mlp_nn_DK, lr=0.05, min_delta=0.001)
training_log = nn_DK_model.train(data_DK_train, data_DK_val, data_DK_test, seed = 2024)
predict_DK = mlp_nn_DK(data_DK_test.x).detach().numpy().reshape(-1)
MSE_nngls.append(torch.mean((data_test.y - predict_nngls)**2))
MSE_nn.append(torch.mean((data_test.y - estimate_nn)**2))
MSE_nnkrig.append(torch.mean((data_test.y - predict_nn)**2))
MSE_nnadd.append(torch.mean((data_test.y - predict_nn_add)**2))
MSE_nnDK.append(torch.mean((data_test.y - predict_DK)**2))

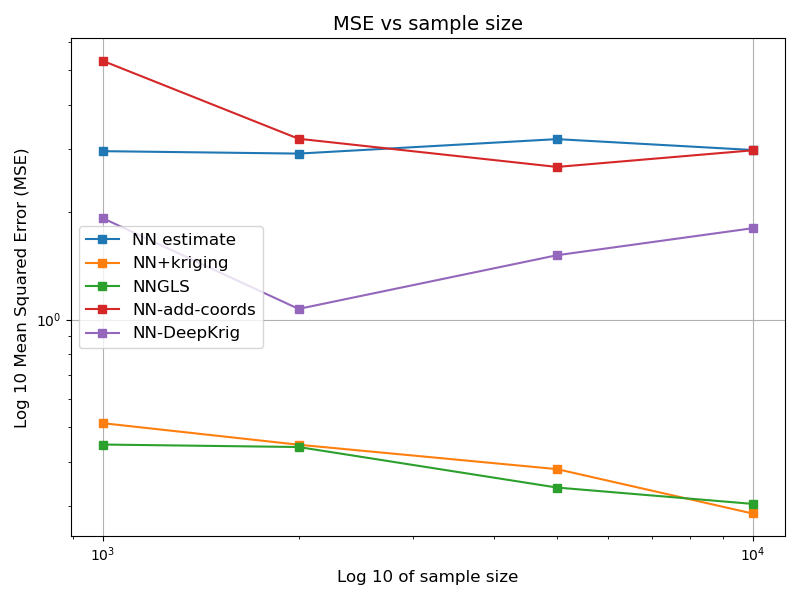

df_MSE = pd.DataFrame(
{'NN estimate': np.array(MSE_nn), 'NN+kriging': np.array(MSE_nnkrig),
'NNGLS': np.array(MSE_nngls), 'NN-add-coords': np.array(MSE_nnadd),
'NN-DeepKrig': np.array(MSE_nnDK),
'n': n_vec}
)
df_MSE
|
NN estimate |
NN+kriging |
NNGLS |
NN-add-coords |
NN-DeepKrig |
n |
| 0 |
2.983742 |
0.523556 |
0.454370 |
3.699407 |
2.003776 |
1000 |
| 1 |
2.921750 |
0.460017 |
0.453934 |
3.302231 |
1.425005 |
2000 |
| 2 |
3.181067 |
0.370218 |
0.507125 |
2.772930 |
1.713040 |
5000 |
| 3 |
2.984987 |
0.291051 |
0.293493 |
3.140883 |
1.588460 |
10000 |
plt.figure(figsize=(8, 6))
plt.plot(df_MSE['n'], df_MSE['NN estimate'], label='NN estimate', linestyle='-', marker='s')
plt.plot(df_MSE['n'], df_MSE['NN+kriging'], label='NN+kriging', linestyle='-', marker='s')
plt.plot(df_MSE['n'], df_MSE['NNGLS'], label='NNGLS', linestyle='-', marker='s')
plt.plot(df_MSE['n'], df_MSE['NN-add-coords'], label='NN-add-coords', linestyle='-', marker='s')
plt.plot(df_MSE['n'], df_MSE['NN-DeepKrig'], label='NN-DeepKrig', linestyle='-', marker='s')
# Add titles and labels
plt.title('MSE vs sample size', fontsize=14)
plt.xlabel('Log 10 of sample size', fontsize=12)
plt.ylabel('Log 10 Mean Squared Error (MSE)', fontsize=12)
plt.xscale('log')
plt.yscale('log')
plt.legend(fontsize=12)
plt.grid(True)
# Show the plot
plt.tight_layout()
plt.savefig(path + "MSE_vs_samplesize.png")
